BIOLOGY

OR GENETICS

Spinal muscular atrophy (SMA) is a rare and debilitating autosomal recessive neuromuscular disease characterised by motor neuron degeneration and loss of muscle strength.1,2

A CLINICAL OVERVIEW OF SMA

The age of onset determines the level of motor neuron degeneration.1,2 Cognitive ability does not appear to be impacted by spinal muscular atrophy.2

INCIDENCE AND PREVALENCE OF SMA

Clinical literature shows a wide range of the incidence and prevalence of spinal muscular atrophy:

  • In the United States, the estimated incidence of spinal muscular atrophy is 8.5 to 10.3 per 100,000 live births.2,3
  • In Europe, the annual incidence varies greatly by country and type.4
  • Global annual incidence per 100,000 live births ranged from 3.5 to 7.1 for type I, 1.0 to 5.3 for type II, and 1.5 to 4.6 for type III.4

The lower motor neurons, located in the spinal cord, are important cells involved in motor function in the central nervous system (CNS) 5

For illustrative purposes only.

GENETICS

The genetic deficit underlying spinal muscular atrophy is well characterised. The role of the survival motor neuron 1 (SMN1) gene is to produce SMN protein, which is highly expressed in the spinal cord and is known to be essential for motor neuron survival.1,6

In SMA, homozygous mutations or deletions of SMN1 produce a shortage of SMN protein, which causes degeneration of motor neurons in the spinal cord.7,8

SMN1 gene6,7,9

The SMN1 gene is located on chromosome 5q13

SURVIVAL MOTOR NEURON 2

Nearly all people, including those with SMA, have a second, virtually duplicate gene to SMN1, known as survival motor neuron 2 (SMN2).2,10

  • SMN2 is nearly identical in genomic sequence to SMN1, with only five nucleotide differences7
  • However, a C-to-T nucleotide difference at position 6 of SMN2 creates an exonic splicing suppressor (ESS) that leads to a skipping of exon 7 during transcription2
  • This results in SMN2 producing a truncated, non-functional, and rapidly degrading SMN protein2

SMN2 gene 2,9

Approximately 10% of SMN2 transcripts result in full-length SMN protein, providing patients with an insufficient amount of SMN protein to sustain survival of spinal motor neurons in the CNS.2

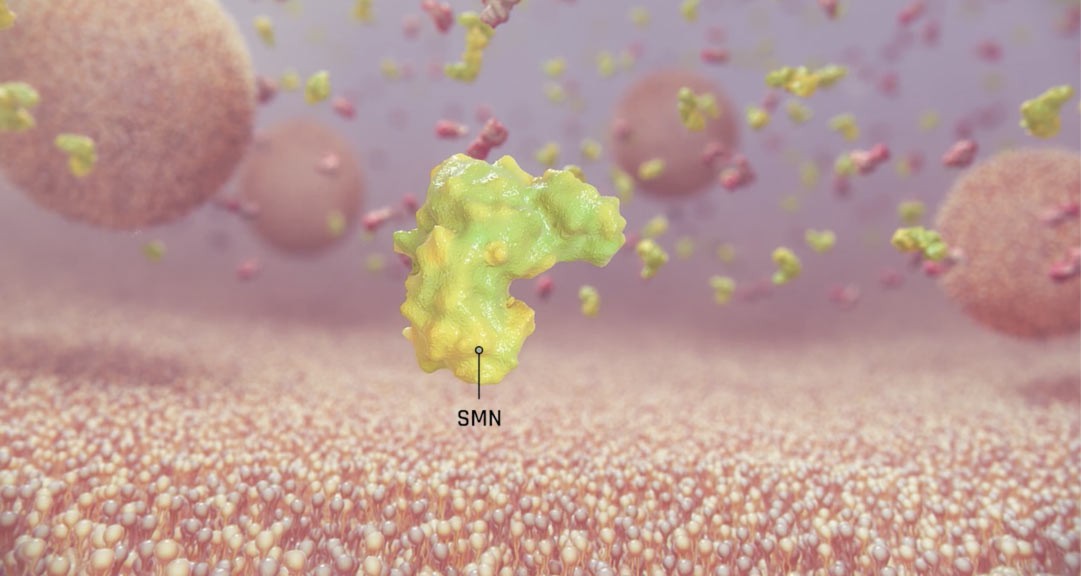

SURVIVAL OF MOTOR NEURON PROTEIN SMN

Due to deficiency of the gene SMN1... 1,11

  • Two copies
  • Both copies are deleted or damaged
SMN deleted or damaged

Partially compensated by the gene SMN2… 1,11

  • Copy number is variable
  • Only 10% SMN is functional

THE NUMBER OF SMN2 GENE COPIES IS INVERSELY RELATED TO THE SEVERITY OF SMA

Copy number of SMN2 is variable in patients with spinal muscular atrophy, and higher copy numbers of SMN2 correlate with less-severe disease:2

1 COPY

MORE THAN

95%

of individuals with spinal muscular atrophy retain at least 1 copy of SMN2

The copy number of SMN2 correlates to disease phenotype.

1 or 2 COPIES

ABOUT

80%

of individuals with Type I spinal muscular atrophy have 1 or 2 copies of SMN2

3 COPIES

ABOUT

82%

of individuals with Type II spinal muscular atrophy have 3 copies of SMN2

The higher the number of SMN2 gene the milder the disease type.

3 or 4 COPIES

ABOUT

96%

of individuals with Type III spinal muscular atrophy have 3 or 4 copies of SMN2

SMN2 copy number is related to, but not predictive of, disease severity, and care decisions should not be made based on copy number alone 12,13

In any case of spinal muscular atrophy, SMN2 copy number is less predictive of prognosis than age of onset and functional abilities14,15

In addition to SMN2, there is some evidence of other genetic modifiers of disease severity, including levels of the protein Plastin-313

Because of its potential role in modulating disease severity, SMN2 is a target for therapeutic interventions.16
